Premium Acoustic Curved Part Glazed Office Screen

1 Product Reviews
PACPG
Curved acoustic office screen with glazed vision panel. Cut noise in the workplace with acoustic office screens. Aluminium frame and choice of colours. Read More
£303.00 EX VAT £363.60 INC VAT

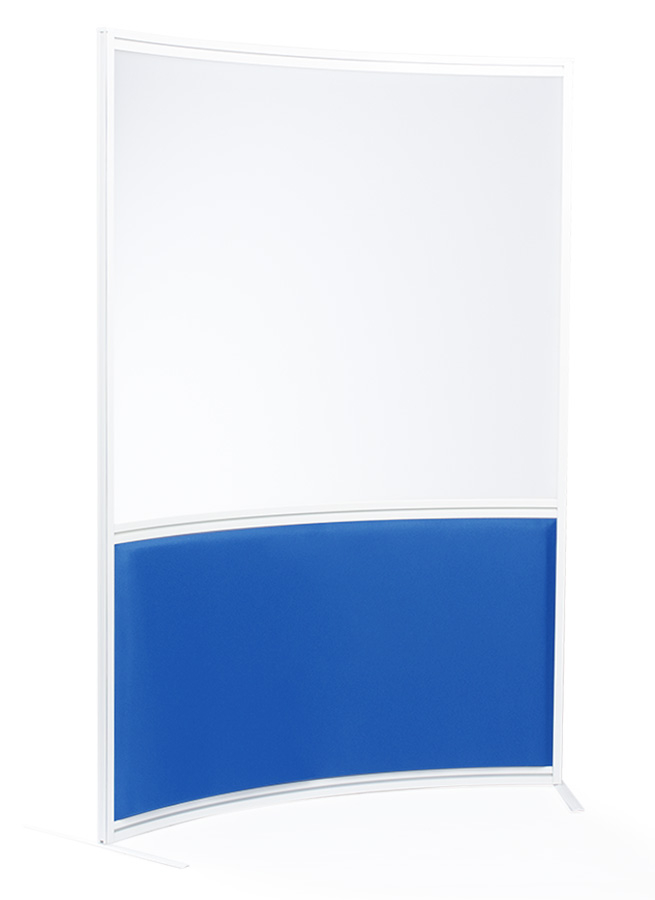

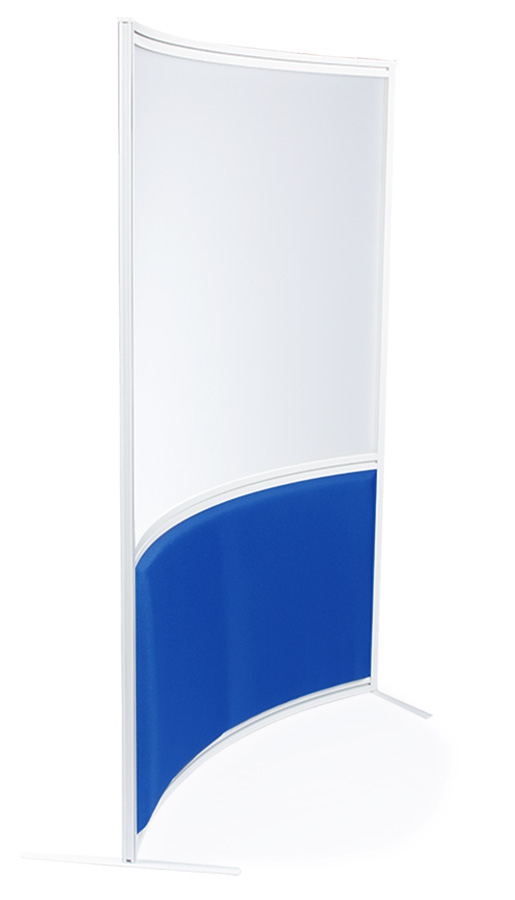

Freestanding Curved Office Screen with Part Glazed Panel

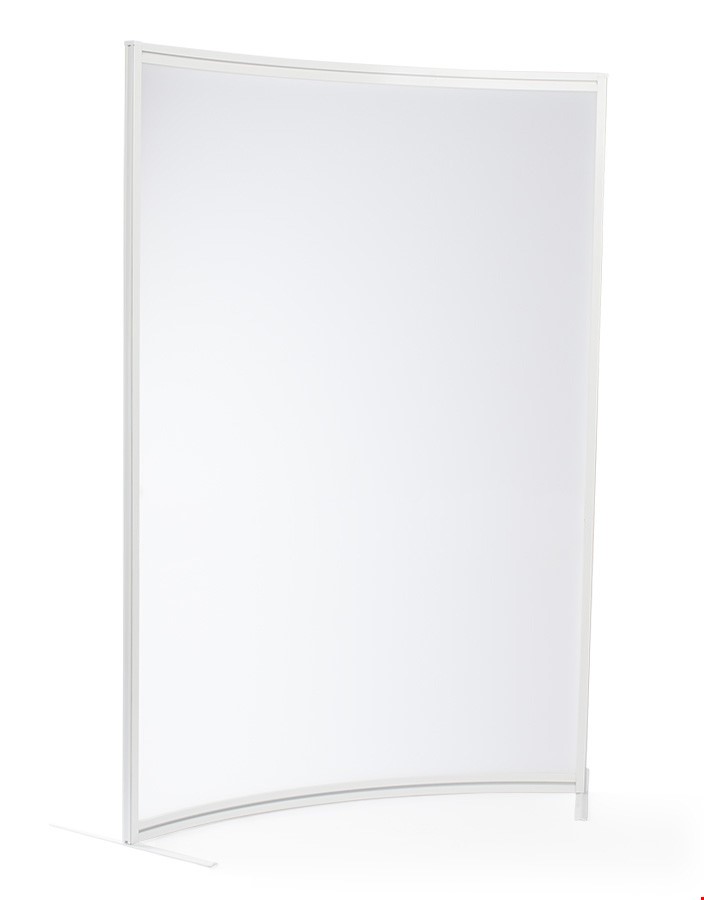

Our Premium Acoustic Curved Part Glazed Office Screen is a combination of a curved screen and a glazed screen with a vision panel set into the top part of the screen. It is available in 4 heights, ranging from 1200mm to 1800mm.

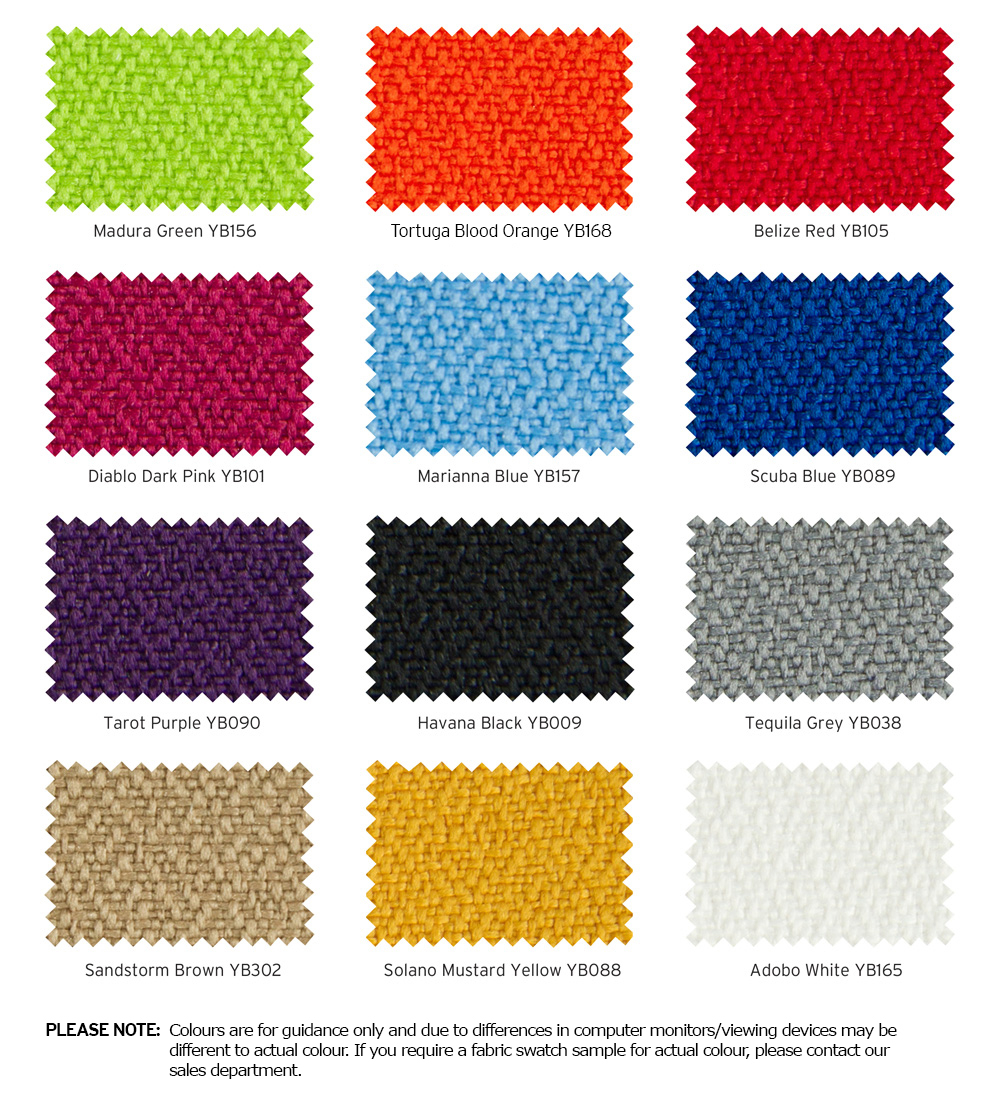

The lower part of this office partition had a carcass construction which enables acoustic sound absorption. It is covered both sides with a thick acoustic layer and foam-backed woven fabric, making the fabric part of the screen 60mm thick. The luxury fabric used is long lasting and durable due to its commercial grade. Choose from 12 vibrant fabric colours.

The top part of the screen is a vision panel made from 5mm thick acrylic. This is set 720mm from the bottom of the screen – from the mid-rail to full height. The acrylic is available in three colours – clear, frosted and polar white.

The screen is surrounded by an aluminium frame which is available in white or silver.

This curved partition screen can be used as either a freestanding screen or linking screen. If linking screens you can create different formations to suit your needs, for example to create a circular office pod.

If you are linking the screen we include two linking strips – one for linking at a 90o angle and one for linking in a straight line. If the screen is to be used as a standalone screen then we also include two finishing strips which give a flush end finish.

There are three radius widths available which create the curve. 1500mm radius will create the shallowest curve, with 850mm radius giving a tighter curve.

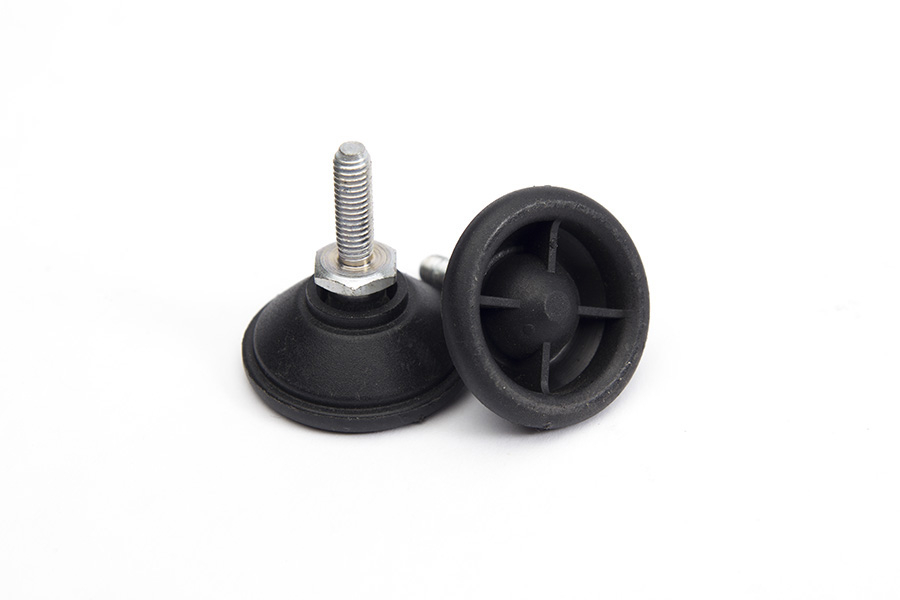

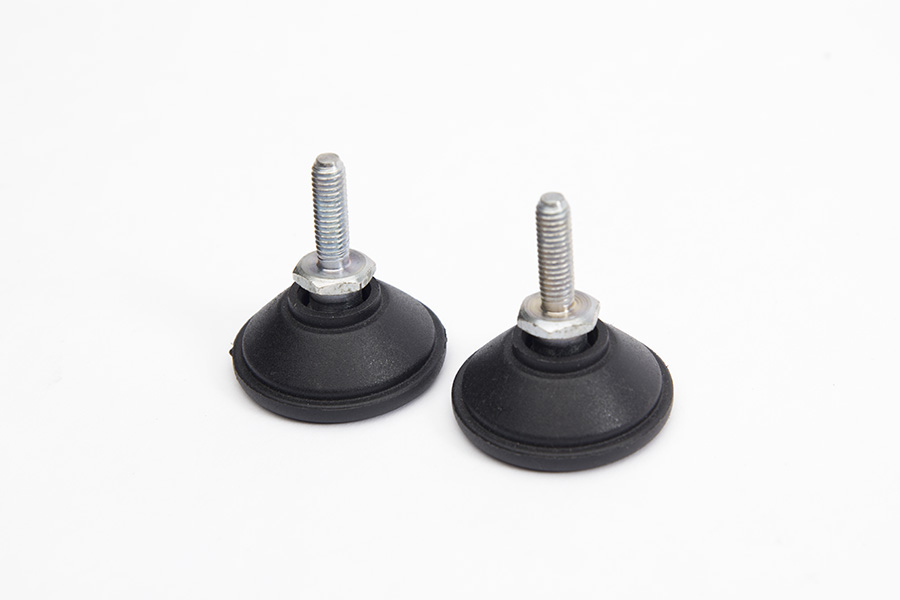

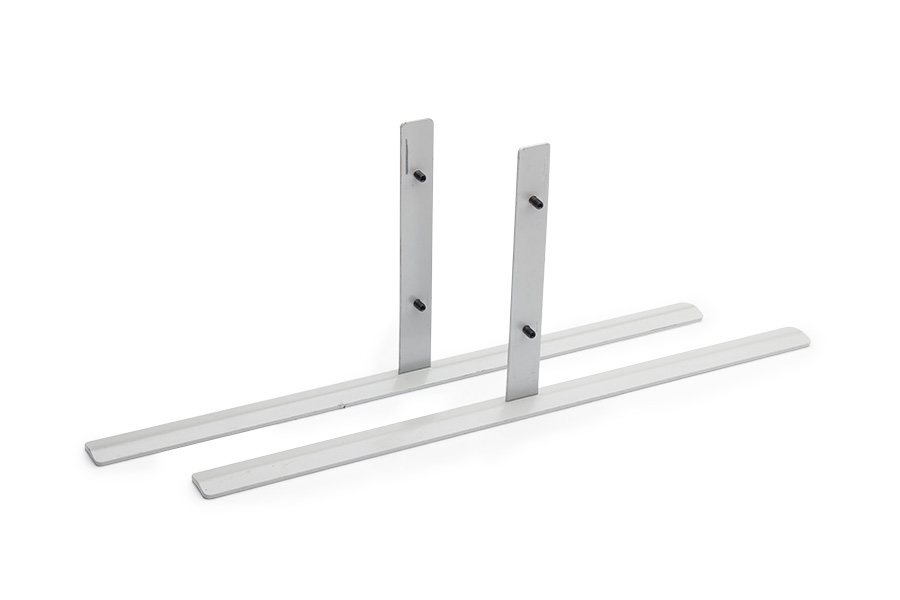

The screen comes with either stabilising feet or adjustable levelling feet. Stabilising feet are required if the curved screen is to be used on its own. Adjustable levelling feet can be used if the screen is to be linked to other screens to create an office pod or larger screen configuration.

Why Choose the Premium Acoustic Curved Part Glazed Office Screen?

  • Curved acoustic office screen with vision top panel
  • Superior acoustic properties in lower screen
  • 60mm thick, pinnable screen with aluminium frame
  • Vision panel made from 5mm thick acrylic
  • Freestanding or linking curved office screen
  • Includes 2 linking strips and 2 finishing strips
  • Adjustable levelling or stabilising feet available, depending on use
  • Choose from 4 heights
  • 3 radius widths available
  • 12 luxury fabric colours available
  • Fabric can be vacuumed or wiped clean with a damp cloth
  • Choose from 3 acrylic colours
  • White or silver aluminium frame
  • 5 year guarantee
  • Made to order in the UK

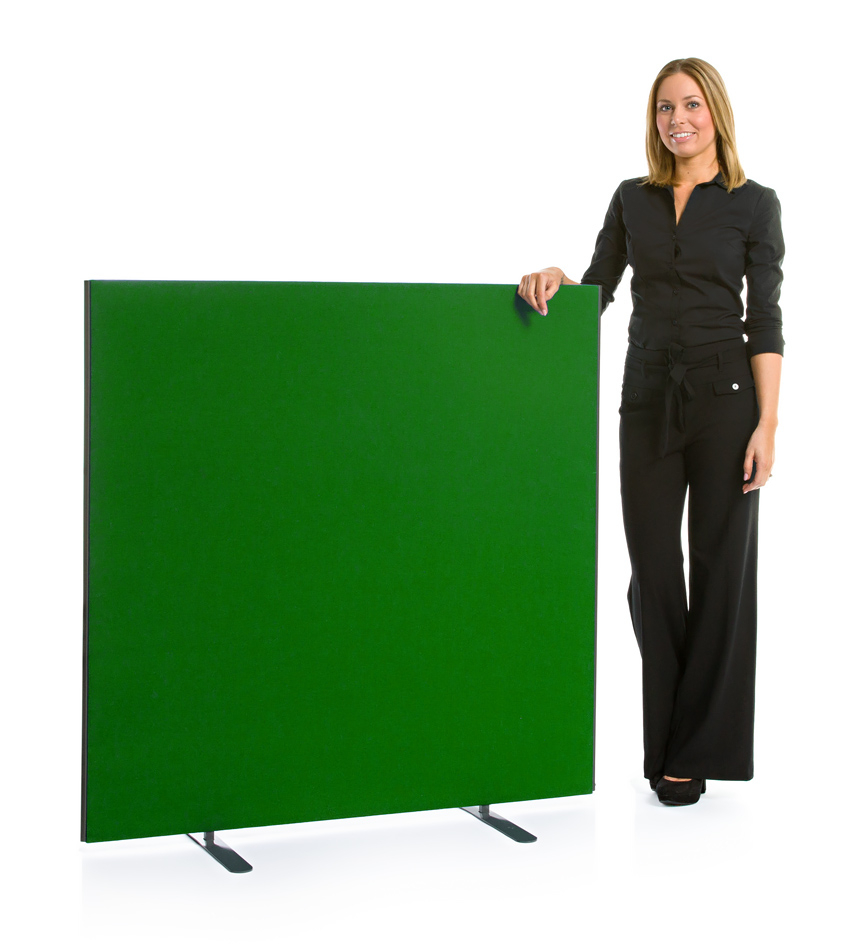

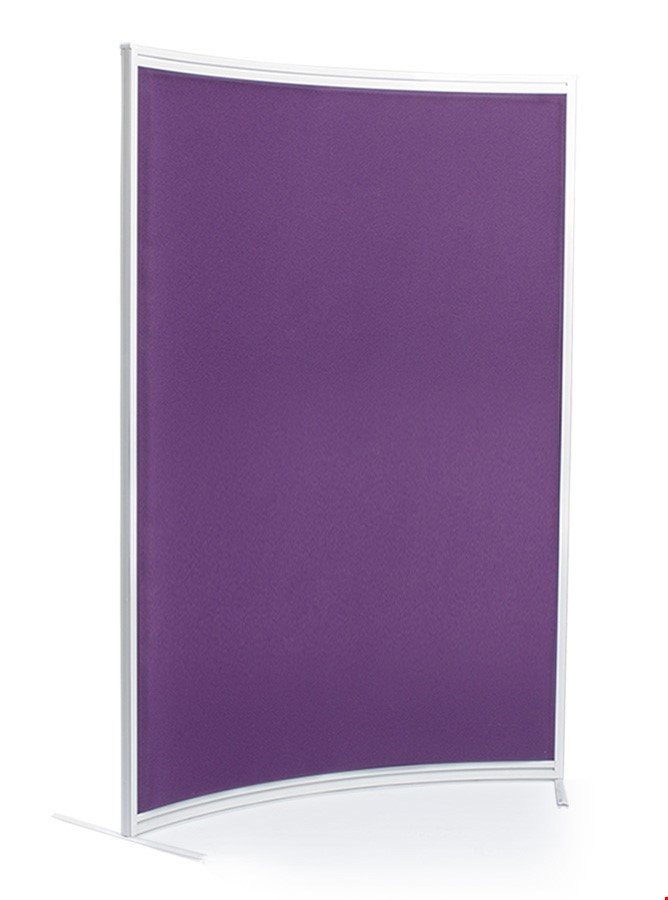

  • Also available as straight screens, curved screen and part glazed straight screen

For more information on our office screens please contact us or call our sales team on 01733 511030.

Delivery

Manufactured to order and dispatched within 10-15 working days.

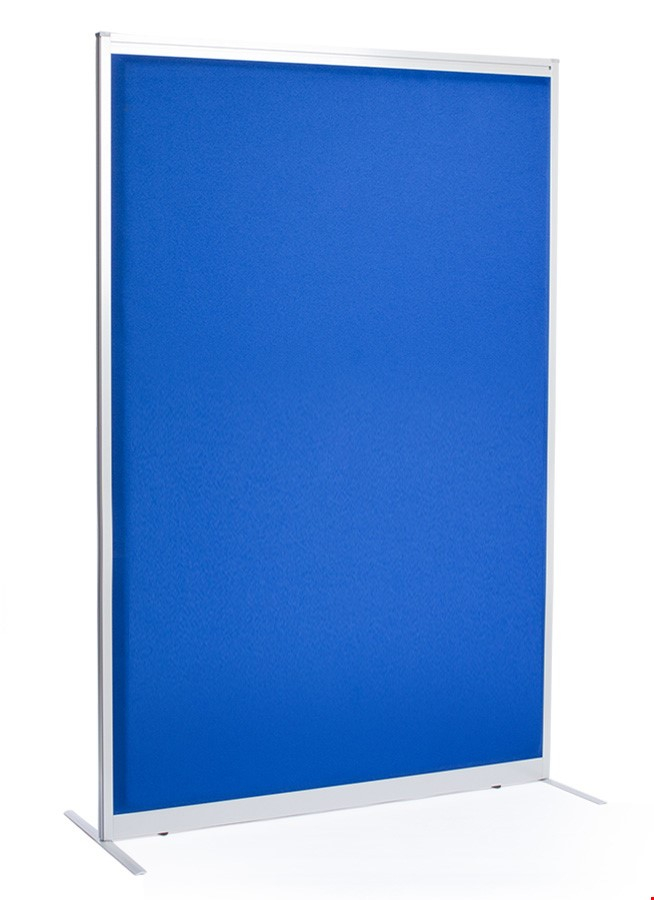

See our full range of Premium Acoustic Office Screens

Premium Acoustic Curved Office Screen Technical Specification

Dimensions: 1800/1600/1400/1200mm (h) x 60mm (d) x 850/1200/1500mm (r)
Stabilising Feet: 600mm (w) each
Mid-Rail Height: 720mm from bottom of screen (approx.)
Frame Depth: 30mm
Frame Width: 25mm (sides); 55mm (bottom)
Top Tool Rail Height: 45mm

Acoustic Material Properties:
Conforms to BS EN ISO 354 calculated in accordance with BS EN ISO 11654
Noise reduction coefficient (NRC) of 0.70
Absorption Coefficient (AC) of 0.85 at an average frequency of 900-3000hz

Fabric Properties:
Fabric Composition: 100% Recycled Polyester
Fabric Flammability: BS 476 Part 7 Class 1; BS EN 1021-1:2014 (cigarette); BS EN 1021-2:2014 (match) BSEN 13501-1 Adhered Class B, s1, d0; BS EN 13501-1 Un-adhered Class B, s1, d2; BS 7176:2007 Low Hazard
Fabric Light Fastness: 6 (ISO 105-B02:2014)

Acrylic Colour Explanations:
Clear – completely transparent
Frosted – translucent, semi-transparent; can see some definition through screen
Polar White – opaque; partially allows light through but cuts out definition through screen
